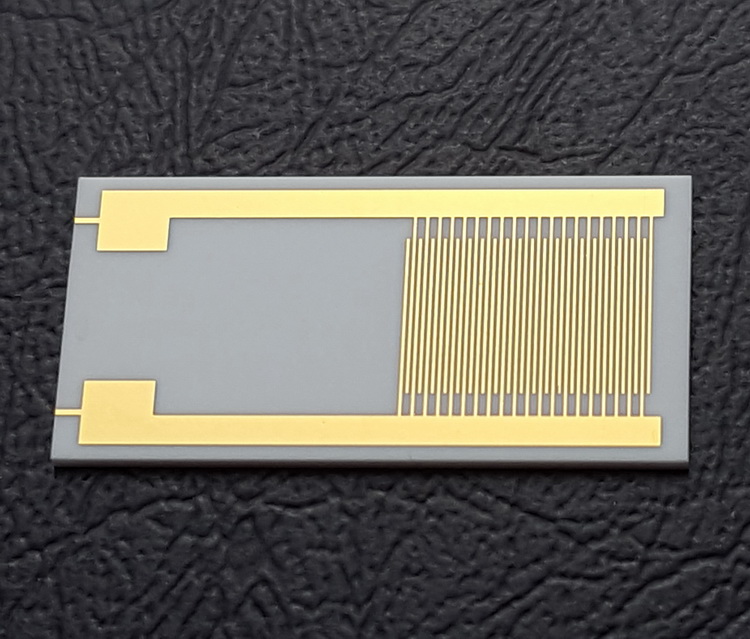

130μm large size ceramic interdigital electrode capacitance array biogas humidity sensor chip 10X20
| 【Numbering】BK2021012507 | 【CAS】cas | ||
| 【Item No.】BK2021012507 | 【specification】 | ||
|
|||

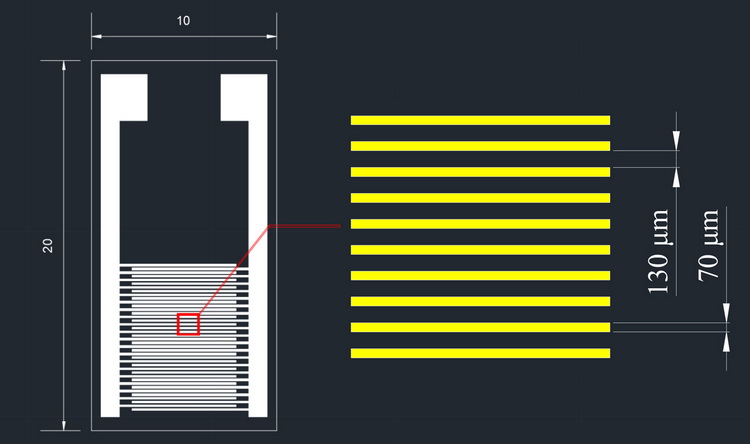

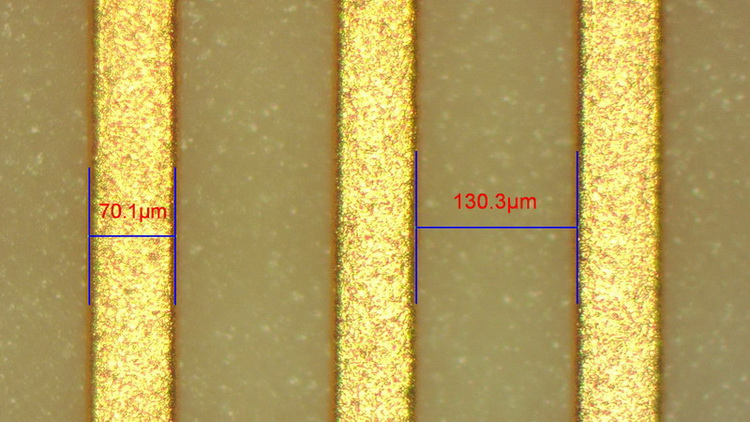

1. Substrate: alumina ceramics; overall dimensions: 20mm*10mm. 2. Finger width: 7oum, finger spacing: 130um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 3um, 1um.
4. Applicable temperature: from -150 degrees Celsius to +350 degrees Celsius.
5. Large size and large pad make it easier to operate and observe.
Message
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 3um, 1um.
4. Applicable temperature: from -150 degrees Celsius to +350 degrees Celsius.
5. Large size and large pad make it easier to operate and observe.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
